Pointing and Line Laser Systems

$ 318.00$ 998.00

At Seiffert Industrial, we offer a wide variety of laser alignment systems.

When you need pointing and line lasers for industrial use, take advantage of our LL-1100 series of systems.

We also offer systems from the LLG-1550 series.

$ 318.00
$ 328.00
$ 346.00
$ 338.00
$ 368.00
$ 368.00
$ 978.00
$ 978.00
$ 998.00
$ 998.00
Stock Item
Made In USA
Categories: ,
Laser Shaft Alignment Tool

Description

The laser line, cross line pattern and the collimated laser spot are factory focused at 1m and can be used up to 6m with the proper optics or they can be set at other distances to order.

They work with an AC adapter and an output of 4.5 volts DC at 700mA. Regardless of the system you choose, trust our laser line pointers to get the job done.

These systems can produce a laser line of 4°, 15°, 35°, 45°, 60°, 75° and 90°, in addition to cross line patterns and collimated spots.

It’s your choice: a Laser Line, a Cross Line or a Laser Spot.

The LL-1100 and LLG-1550 series are extremely durable, and are water, shock and dust proof. In fact, they have an environmental protection rating of IP 67.

Additional information

Weight 2 lbs
Output Power

These Line Laser Alignment Systems have an output power of 1.0mW to 50mW.

Operating Voltage

From 3 to 5 VDC with an operating current of <30mA, with an operating temperature of -10°C to 50°C.

Additional Specs

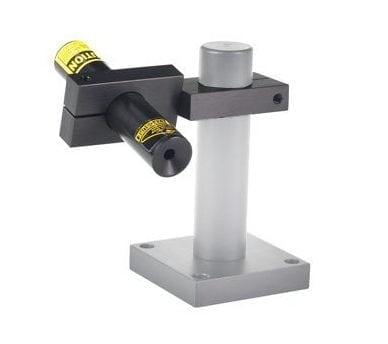

Pointing and Line Laser Mounting Brackets
LL-1100-BK
Adjustable Bracket
Adjustable angle, Set screw security,
Full 360 degree rotation.

Features

LL-1100 & LL-1550 Product Features:

Collimated or adjustable focus beam
3 laser options: line, cross or spot
High Stability
Reverse polarity protection
Low Noise
High grade glass options (industrial hardened)
Waterproof
Shock Proof
Dustproof
Custom options available

Additional Details for the LL-1100:
LL-1100 Brochure

Additional Details for the LL-1550:
LLG-1550 Brochure
